Echarts 实现飞线图效果
大约 17 分钟
Echarts 实现飞线图效果

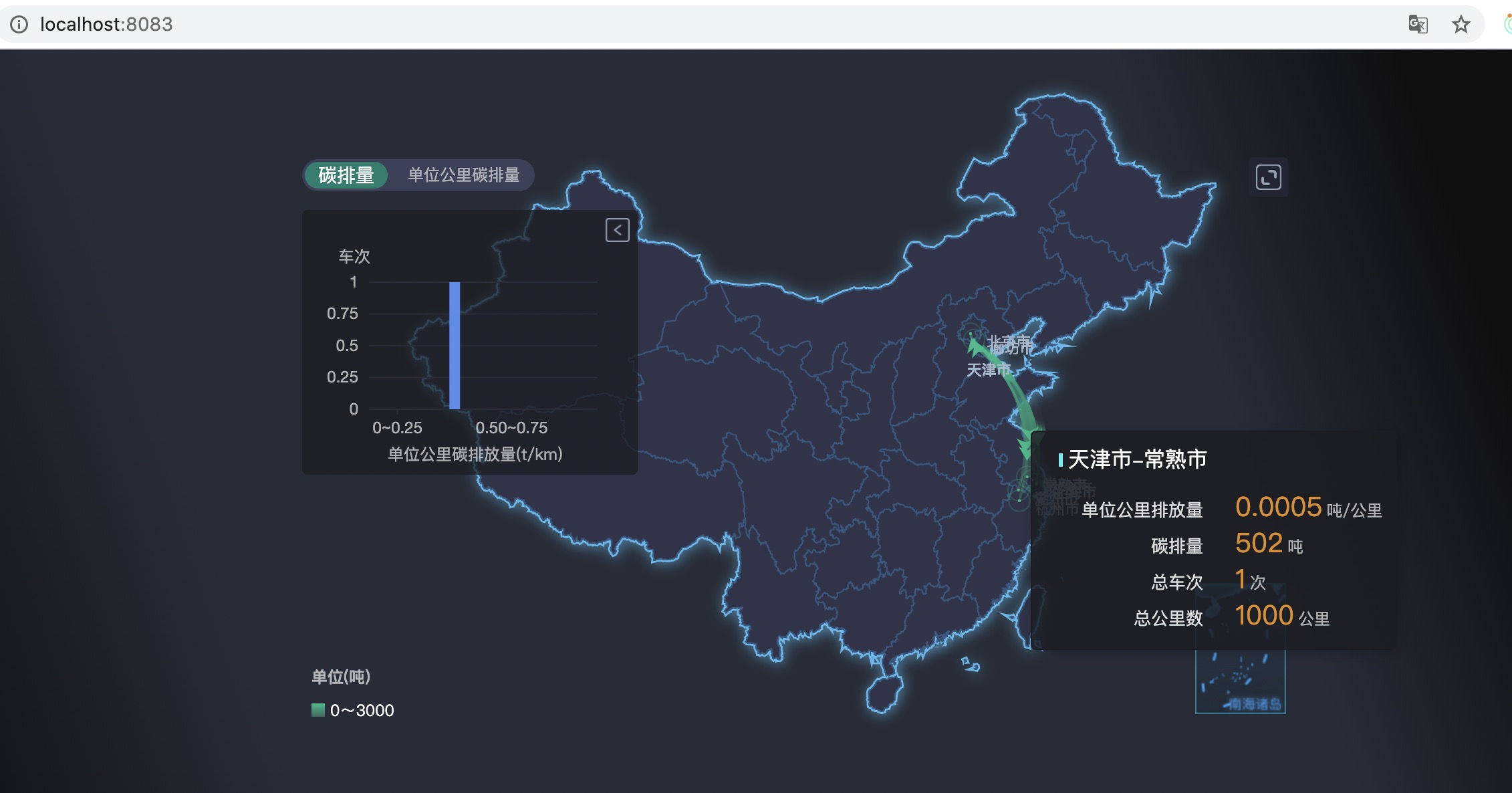

效果图
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta http-equiv="X-UA-Compatible" content="ie=edge">
<title>中国地图飞线</title>
<style>
#china {
width: 1370px;
height: 600px;
}
</style>
</head>
<body>
<div id="china"></div>
</body>
<script src="js/echarts.min.js"></script>
<script src="js/china.js"></script>
<script type="text/javascript">
var chinaGeoCoordMap = {
'黑龙江': [127.9688, 45.368],
'内蒙古': [110.3467, 41.4899],
"吉林": [125.8154, 44.2584],
};
var chinaDatas = [
[{ name: '黑龙江', value: 0 }],
[{ name: '内蒙古', value: 0 }],
[{ name: '吉林', value: 0 }],
];
var convertData = function(data) {
var res = [];
for(var i = 0; i < data.length; i++) {
var dataItem = data[i];
// 飞线图的起点
var fromCoord = chinaGeoCoordMap[dataItem[0].name];
var toCoord = [116.4551,40.2539]; // 飞线图的目标点
if (fromCoord && toCoord) {
res.push([{
coord: fromCoord,
value: dataItem[0].value
},
{
coord: toCoord,
}]);
}
}
return res;
};
var series = [];
[['北京市', chinaDatas]].forEach(function(item, i) {
console.log('---item----', item[1]);
series.push({
type: 'lines',
zlevel: 2,
effect: {
show: true,
period: 4, //箭头指向速度，值越小速度越快
trailLength: 0.02, //特效尾迹长度[0,1]值越大，尾迹越长重
symbol: 'image://./images/airline.png',
symbolSize: [20, 20], //图标大小
},
lineStyle: {
normal: {
width: 1, //尾迹线条宽度
opacity: 1, //尾迹线条透明度
curveness: .3 //尾迹线条曲直度
}
},
data: convertData(item[1])
});
});
var option = {
tooltip: {
trigger: 'item',
backgroundColor: 'rgba(166, 200, 76, 0.82)',
borderColor: '#FFFFCC',
showDelay: 0,
hideDelay: 0,
enterable: true,
transitionDuration: 0,
extraCssText: 'z-index:100',
formatter: function(params, ticket, callback) {
//根据业务自己拓展要显示的内容
var res = "";
var name = params.name;
var value = params.value[params.seriesIndex + 1];
res = "<span style='color:#fff;'>" + name + "</span><br/>数据：" + value;
return res;
}
},
backgroundColor:"#013954", // 地图背景
geo: {
map: 'china',
zoom: 1.2,
label: {
emphasis: {
show: false
}
},
roam: true, //是否允许缩放
itemStyle: {
normal: {
color: 'rgba(51, 69, 89, .5)', //地图背景色
borderColor: '#516a89', //省市边界线00fcff 516a89
borderWidth: 1
},
emphasis: {
color: 'rgba(37, 43, 61, .5)' //悬浮背景
}
}
},
series: series
};
let china = echarts.init(document.getElementById('china'));
china.setOption(option);
</script>
</html>
import React, { useState, useEffect } from 'react';
import _ from 'lodash';
import {
Chart,
Interval,
Axis,
Tooltip,
} from 'bizcharts';
const MyChart = (props) => {
let {
datas,
} = props;
var china;
var series = [];
let [ isFull, setFull ] = useState(false);
let [ isClick, setClick ] = useState(false);
let [ data2, setData2 ] = useState([]);
let [ isVisible, setVisible ] = useState(false);
let [ isFixed, setFixed ] = useState(false);
let [ xy_value, setXYValue ] = useState(null); // 保存鼠标在页面上移动的 x / y 轴的坐标值
let [ line_datas, setLineData ] = useState(null); // 保存飞线图的数据
let [ currentIndex, setCurrentIndex ] = useState(0); // 当前tab项的索引值，默认为0，第一项
// 地图数据
var chinaGeoCoordMap = {};
// 全局保存地图缩放的zoom 默认为1
var GLOBAL_ZOOM = 1;
// 保存用户是否已经点击了飞线图的状态 默认未点击，点击后，通过该参数锁定
var isAlreadyClickFlight = false;
// 保存options
window.GLOBAL_OPTIONS = {};
// 保存 seriesIndex 索引值
var GLOBAL_SERIES_INDEX = 1;
// 保存 飞线图的宽度，默认为1
var GLOBAL_LINE_WIDTH = 1;
function convertData(data, formdata, formdataValue) {
var res = [];
for(var i = 0; i < data.length; i++) {
var dataItem = data[i];
var fromCoord = chinaGeoCoordMap[dataItem[0].name];
if(fromCoord && formdataValue) {
res.push(
[
{
formName: formdata,
coord: formdataValue,
},
// 飞线往哪里去
{
toName: dataItem[0].name,
coord: fromCoord,
value: dataItem[0].value,
item: dataItem[0]
}
]
);
}
}
return res;
}
/*
* @param { formdata } 中心点
* @param { chinaDatas } 飞行数据
* @param { formdataValue } 中心点坐标
*/
function seriesFunc(formdata, chinaDatas, formdataValue) {
let name = '';
let color = '';
let startColor = ''; // 渐变起始颜色
let levelParams = 0; // 保存判断级别的变量
if (currentIndex == 0) { // 碳排量
levelParams = chinaDatas[0][0].totalCarbonEmission;
} else if (currentIndex == 1) { // 单位公里碳排量
levelParams = chinaDatas[0][0].unitCarbonEmission;
}
if (levelParams >= 9000) {
name = '9000以上';
color = '#c51b37';
startColor = '#b34c5d';
} else if (levelParams >= 6000 && levelParams < 9000) {
name = '6000～9000';
color = '#e28e10';
startColor = '#886127';
} else if (levelParams >= 3000 && levelParams < 6000) {
name = '3000～6000';
color = '#3f90ff';
startColor = '#2f5c98';
} else if (levelParams >= 0 && levelParams < 3000) {
name = '0～3000';
color = '#14be8b';
startColor = '#3d675b';
}
if (chinaDatas && chinaDatas.length) {
[[formdata, chinaDatas]].forEach(function(item, i) {
series.push(
{
type: 'lines',
name: name,
coordinateSystem: 'geo',
zlevel: 2,
effect: {
show: true,
period: 8, //箭头指向速度，值越小速度越快
trailLength: 0.02, //特效尾迹长度[0,1]值越大，尾迹越长重
// symbol: 'image://./images/airline.png', // 箭头图标
symbol: 'arrow',
// symbolSize: [20, 20], //图标大小
symbolSize: 10,
color: color, // 图标颜色
},
lineStyle: {
normal: {
show: true,
width: 2, //尾迹线条宽度
opacity: 0.6, //尾迹线条透明度
curveness: 0.3, //尾迹线条曲直度
color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [
{
offset: 0,
color: color // 0% 处的颜色
},
{
offset: 1,
color: startColor // 100% 处的颜色
}
])
},
},
data: convertData(item[1], formdata, formdataValue),
},
// 出发点
{
type: 'effectScatter',
coordinateSystem: 'geo',
zlevel: 2,
hoverAnimation: true, // 鼠标移动上去后效果
rippleEffect: { //涟漪特效
period: 8, //动画时间，值越小速度越快
brushType: 'stroke', //波纹绘制方式 stroke, fill
scale: 10 //波纹圆环最大限制，值越大波纹越大
},
label: {
normal: {
show: true,
position: 'bottom', //显示位置
offset: [6, 6], //偏移设置
color: '#a7b9cd',
formatter: function(params){ // 圆环显示文字
// return '';
return params.data.name;
},
fontSize: 11,
},
// 高亮时效果
emphasis: {
show: true,
areaColor: 'null',
}
},
symbol: 'circle',
symbolSize: function(val) {
return 5 + val[2] * 5; // 圆环大小
},
itemStyle: {
normal: {
show: false,
color: color,
}
},
data: [{
name: chinaDatas[0][0].isStartAndEnd ? '' : formdata,
value: formdataValue,
}],
},
// 到达点
{
type: 'effectScatter',
coordinateSystem: 'geo',
zlevel: 2,
hoverAnimation: true, // 鼠标移动上去后效果
rippleEffect: { //涟漪特效
period: 8, //动画时间，值越小速度越快
brushType: 'stroke', //波纹绘制方式 stroke, fill
number: 1,
scale: 10 //波纹圆环最大限制，值越大波纹越大
},
label: {
normal: {
show: true,
position: 'right', //显示位置
color: '#a7b9cd',
offset: [6, 6], //偏移设置
formatter: function(params) { // 圆环显示文字
// return '';
return params.data.name;
},
fontSize: 11
},
// 高亮时效果
emphasis: {
show: true,
areaColor: 'null',
}
},
symbol: 'circle',
symbolSize: function(val) {
return 2 + val[2] * 5; // 圆环大小
},
itemStyle: {
normal: {
show: false,
color: color,
}
},
data: item[1].map(function(dataItem) {
return {
name: chinaDatas[0][0].isStartAndEnd ? '' : dataItem[0].name,
value: chinaGeoCoordMap[dataItem[0].name].concat([dataItem[0].value])
};
}),
}
)
})
}
}
/*
* 获取飞行数据的所有原点和终点
* @return { Array } 返回所有飞行数据的原点和终点
* 类似数据如下: [{label: '深圳', value: ['经度', '纬度']}, ....依次类推]
*/
function getFlightOrigins(data) {
let rets = []; // 保存飞行数据的原点
let rets2 = []; // 保存飞行数据的终点
let obj = {};
let obj2 = {};
if (data && data.length) {
data.forEach(item => {
rets.push({
label: item.shipment,
value: item.shipmentCoordinate
});
rets2.push({
label: item.destination,
value: item.destinationCoordinate,
})
})
}
const flightOriginsStart = rets.reduce((prev, cur) => {
obj[cur.label] ? '' : obj[cur.label] = true && prev.push(cur);
return prev;
}, []);
rets2 = rets2.concat(rets);
const flightOriginsEnd = rets2.reduce((prev, cur) => {
obj2[cur.label] ? '' : obj2[cur.label] = true && prev.push(cur);
return prev;
}, []);
let obj3 = {};
if (flightOriginsEnd && flightOriginsEnd.length) {
flightOriginsEnd.forEach(item => {
obj3[item.label] = item.value;
})
}
chinaGeoCoordMap = obj3;
return {
flightOriginsStart,
flightOriginsEnd,
}
};
// 先克隆一下对象，遍历下，给对象添加新属性，如果原点和目标点相同的话，说明既是原点又是终点
const { flightOriginsStart } = getFlightOrigins(datas);
for (let i = 0; i < flightOriginsStart.length; i++) {
const itemLabel = flightOriginsStart[i].label;
for (let j = 0; j < datas.length; j++) {
if (datas[j].destination === itemLabel) {
datas[j].isStartAndEnd = true;
}
}
}
/**
* 获取飞行数据的所有原点对应的所有终点
* @param { flightOrigins } 根据飞行数据的所有原点来获取对应的所有终点数据
* 原起点数据如下 flightOrigins = [{label: '深圳', value: ['经度', '纬度']}, ....依次类推]
* @return { Array } 返回所有飞行数据的终点 key对应的飞行原点的label
* 返回的数据如下：[
* {'深圳': [ [[{name: '', value: 0}]], [[{name: '', value: 0}]] ]},
* {'东莞': [ [[{name: '', value: 0}]], [[{name: '', value: 0}]] ]}
* .... 以此类推
* ]
*/
function getFlightEnd(flightOrigins) {
let rets = [];
if (flightOrigins && flightOrigins.length) {
for (let i = 0; i < flightOrigins.length; i++) {
const itemLabel = flightOrigins[i].label; // 获取飞行数据的原点对应的所有终点数据
rets.push(getItemFlightEnd(itemLabel, flightOrigins[i].value));
}
}
return rets;
};
function getItemFlightEnd(itemLabel, pos) {
let rets = [];
let obj = {};
for (let i = 0; i < datas.length; i++) {
const item = datas[i];
if (itemLabel === item.shipment) {
rets.push([[{
name: item.destination,
value: 0,
unitCarbonEmission: item.unitCarbonEmission,
totalCarbonEmission: item.totalCarbonEmission,
totalTruckSize: item.totalTruckSize,
totalKilometres: item.totalKilometres,
isStartAndEnd: item.isStartAndEnd || false,
carSizeData: item.carSizeData,
}]])
}
}
obj = {
'label': itemLabel,
'pos': pos,
'value': rets,
}
return obj;
}
/*
* 定位legend
* 获取legend的个数
*/
function getLegendCount() {
const { series = [] } = window.GLOBAL_OPTIONS;
let rets = [];
if (series.length) {
series.forEach(item => {
if (item.type === 'lines') {
rets.push(item.name);
}
});
}
console.log('----window.GLOBAL_OPTIONS----', window.GLOBAL_OPTIONS);
return Array.from(new Set(rets));
}
function initFlight() {
// 获取到所有的数据
const allDatas = getFlightEnd(getFlightOrigins(datas).flightOriginsStart);
// 初始化飞行数据
if (allDatas && allDatas.length) {
for (let init = 0; init < allDatas.length; init++) {
const formdata = allDatas[init].label;
const formdataValue = allDatas[init].pos;
const { value = [] } = allDatas[init];
if (value && value.length) {
for (let y = 0; y < value.length; y++) {
const chinaDatas = value[y];
seriesFunc(formdata, chinaDatas, formdataValue)
}
}
}
}
}
initFlight();
function openFullScreen() {
let el = document.getElementById("myChart");
if (el.requestFullScreen) {
el.requestFullScreen();
} else if (el.mozRequestFullScreen) {
el.mozRequestFullScreen();
} else if (el.webkitRequestFullScreen) {
el.webkitRequestFullScreen();
} else if (el.msRequestFullScreen) {
el.msRequestFullScreen();
}
};
function exitFullScreen() {
if (document.exitFullScreen) {
document.exitFullScreen();
} else if (document.mozCancelFullScreen) {
document.mozCancelFullScreen();
} else if (document.webkitCancelFullScreen) {
document.webkitCancelFullScreen();
} else if (document.msExitFullScreen) {
document.msExitFullScreen();
}
}
// 是否为全屏
function isFullScreen() {
return !!(
document.fullscreen ||
document.mozFullScreen ||
document.webkitIsFullScreen ||
document.webkitFullScreen ||
document.msFullScreen
);
};
// 获取鼠标在地图上移动的位置
function pos(event) { //鼠标定位赋值函数
var posX = 0, posY = 0; //临时变量值
var e = event || window.event; //标准化事件对象
if (e.pageX || e.pageY) { //获取鼠标指针的当前坐标值
posX = e.pageX;
posY = e.pageY;
} else if (e.clientX || e.clientY) {
posX = event.clientX + document.documentElement.scrollLeft + document.body.scrollLeft;
posY = event.clientY + document.documentElement.scrollTop + document.body.scrollTop;
}
return {
x: posX,
y: posY,
};
}
// 重置 layoutSize
function resetLayoutSize() {
// 如果是全屏下
if (isFullScreen()) {
window.GLOBAL_OPTIONS.layoutSize = window.screen.height;
window.GLOBAL_OPTIONS.layoutCenter = ['50%', '50%'];
} else {
if (window.screen.height > 950 && window.screen.height < 1200) {
window.GLOBAL_OPTIONS.layoutSize = 800;
} else if (window.screen.height > 1200) {
window.GLOBAL_OPTIONS.layoutSize = 1100;
} else {
window.GLOBAL_OPTIONS.layoutSize = 600;
}
window.GLOBAL_OPTIONS.layoutCenter = ['50%', '35%'];
}
console.log('-----resetLayoutSize---', window.GLOBAL_OPTIONS);
}
// 设置legend位置
function setLegendPos() {
let left = 340, bottom = window.screen.height > 1200 ? 395 : 345; // 页面初始化的时候，定位在该位置
const count = getLegendCount().length;
const datas = getLegendCount();
let rets = [];
if (datas && datas.length) {
datas.forEach(item => {
rets.push({
name: item,
icon: 'rect'
})
})
}
if (count === 1) {
if (isFullScreen()) {
left = 10;
bottom = 50;
} else {
left = 340;
bottom = window.screen.height > 1200 ? 420 : 370;
}
} else if (count === 2) {
if (isFullScreen()) {
left = 10;
bottom = 76;
} else {
left = 340;
bottom = window.screen.height > 1200 ? 446 : 396;
}
} else if (count === 3) {
if (isFullScreen()) {
left = 10;
bottom = 100;
} else {
left = 340;
bottom = window.screen.height > 1200 ? 470 : 420;
}
} else if (count === 4) {
if (isFullScreen()) {
left = 10;
bottom = 120;
} else {
left = 340;
bottom = window.screen.height > 1200 ? 496 : 446;
}
}
window.GLOBAL_OPTIONS.title[0].left = left;
window.GLOBAL_OPTIONS.title[0].bottom = bottom;
window.GLOBAL_OPTIONS.legend.data = rets;
}
// 获取seriesIndex
function getSeriesIndex(options, params) {
const { data = {} } = params;
const { formName = '', toName = '' } = data;
const { series = [] } = options;
let seriesIndex = 0;
if (series.length) {
for (let s = 0; s < series.length; s++) {
const item = series[s];
if (item.type === 'lines') {
const sData = item.data;
const currentFormName = sData[0][0].formName;
const currentToName = sData[0][1].toName;
if ((formName === currentFormName) && (toName === currentToName)) {
seriesIndex = s;
break;
}
}
}
}
return seriesIndex;
}
var option = {
layoutCenter: ['50%', '35%'],
layoutSize: (window.screen.height > 950 && window.screen.height < 1200) ? 800 : (window.screen.height > 1200 ? 1100 : 600),
title: [
{
text: '单位(吨)',
left: 340,
bottom: 446,
width: 100,
textStyle: {
fontSize: 12,
color: 'rgba(255,255,255,0.65)',
}
}
],
legend: {
orient: 'vertical',
left: 340,
bottom: window.screen.height > 1200 ? 395 : 345,
itemWidth: 8,
itemHeight: 8,
itemGap: 12,
data: [
{
name: '9000以上',
icon: 'rect'
},
{
name: '6000～9000',
icon: 'rect'
},
{
name: '3000～6000',
icon: 'rect'
},
{
name: '0～3000',
icon: 'rect'
}
],
textStyle: {
color: '#fff'
},
},
color: ["#c51b37", "#e28e10", "#3f90ff", "#14be8b"],
toolbox: {
show: true,
itemGap: 5,
right: 358,
top: window.screen.height > 1200 ? 72 : 122,
itemSize: 32,
zlevel: 1000000,
showTitle: false, // 鼠标移动上去不显示标题
feature: {
dataView: {
show: false,
},
dataZoom: {
show: true,
iconStyle: {
opacity: 0,
},
},
restore: { show: false },
saveAsImage: { show: false },
// 全屏
myFull: {
show: true,
title: '',
icon: 'image://https://img.alicdn.com/imgextra/i1/O1CN01uVpZCF1V30vM3BxGI_!!6000000002596-2-tps-200-200.png',
onHover: (e) => {
console.log('---onHover---', e);
var opts = e.getOption();
if (isFullScreen()) {
opts.toolbox[0].feature.myFull.icon = "image://https://img.alicdn.com/imgextra/i3/O1CN01vgzs4g1xQCDGIka2M_!!6000000006437-2-tps-200-200.png";
} else {
opts.toolbox[0].feature.myFull.icon = "image://https://img.alicdn.com/imgextra/i3/O1CN01PPeB6j1pA9PUu5aL3_!!6000000005319-2-tps-200-200.png";
}
china.setOption(opts);
},
onHide: (e) => {
var opts = e.getOption();
if (isFullScreen()) {
opts.toolbox[0].feature.myFull.icon = "image://https://img.alicdn.com/imgextra/i4/O1CN01WjTtjv1xCuj5ZiLyZ_!!6000000006408-2-tps-200-200.png";
} else {
opts.toolbox[0].feature.myFull.icon = "image://https://img.alicdn.com/imgextra/i1/O1CN01uVpZCF1V30vM3BxGI_!!6000000002596-2-tps-200-200.png";
}
china.setOption(opts);
},
onclick: (e) => {
var opts = e.getOption();
if (isFullScreen()) {
opts.toolbox[0].feature.myFull.icon = "image://https://img.alicdn.com/imgextra/i1/O1CN01uVpZCF1V30vM3BxGI_!!6000000002596-2-tps-200-200.png";
opts.toolbox[0].right = 358;
opts.toolbox[0].top = window.screen.height > 1200 ? 72 : 122;
opts.layoutCenter = ['50%', '35%'];
if (window.screen.height > 950 && window.screen.height < 1200) {
opts.layoutSize = 800;
} else if (window.screen.height > 1200) {
opts.layoutSize = 1100;
} else {
opts.layoutSize = 600;
}
opts.legend[0].left = 340;
opts.legend[0].bottom = window.screen.height > 1200 ? 490 : 345;
// 如果是全屏模式，就退出全屏
exitFullScreen();
} else {
opts.toolbox[0].feature.myFull.icon = "image://https://img.alicdn.com/imgextra/i4/O1CN01WjTtjv1xCuj5ZiLyZ_!!6000000006408-2-tps-200-200.png";
opts.legend[0].left = 10;
opts.legend[0].bottom = 20;
opts.layoutCenter = ['50%', '50%'];
opts.layoutSize = window.screen.height;
opts.toolbox[0].top = 30;
opts.toolbox[0].right = 30;
// opts.geo[0].zoom = 1.5;
// 否则，打开全屏
openFullScreen();
}
if (opts.series[GLOBAL_SERIES_INDEX]) {
opts.series[GLOBAL_SERIES_INDEX].lineStyle.width = 1;
}
let left = 340, bottom = window.screen.height > 1200 ? 395 : 345; // 页面初始化的时候，定位在该位置
const count = getLegendCount().length;
if (count === 1) {
if (isFullScreen()) {
left = 340;
bottom = window.screen.height > 1200 ? 520 : 370;
} else {
left = 10;
bottom = 50;
}
} else if (count === 2) {
if (isFullScreen()) {
left = 340;
bottom = window.screen.height > 1200 ? 540 : 396;
} else {
left = 10;
bottom = 76;
}
} else if (count === 3) {
if (isFullScreen()) {
left = 340;
bottom = window.screen.height > 1200 ? 565 : 420;
} else {
left = 10;
bottom = 100;
}
} else if (count === 4) {
if (isFullScreen()) {
left = 340;
bottom = window.screen.height > 1200 ? 584 : 446;
} else {
left = 10;
bottom = 120;
}
}
opts.title[0].left = left;
opts.title[0].bottom = bottom;
console.log('---opts-1223444--', opts);
window.GLOBAL_OPTIONS = opts;
console.log('--xxx--opts---', opts);
// 解决窗口缩放事件导致不重新渲染的bug
setTimeout(() => {
china.setOption(opts);
}, 350)
}
},
}
},
tooltip: {
show: true,
// triggerOn: 'click',
trigger: 'item',
backgroundColor: 'rgba(27, 28, 33, 0.85)',
borderColor: 'rgba(27, 28, 33, 0.85)',
showDelay: 0, // 浮层显示的延迟
hideDelay: 100, //浮层隐藏的延迟
enterable: true, // 鼠标是否可进入提示框浮层中
transitionDuration: 0, // 提示框浮层的移动动画过度时间 设置0的时候会紧跟着鼠标移动
extraCssText: 'z-index:100000',
textStyle: {
color: '#fff',
},
formatter: function(params, ticket, callback) {
const { data = {} } = params;
const {
formName = '',
item = {},
toName = ''
} = data;
if (!formName) {
return;
}
// 如果已经点击了飞线图 就不需要再提示了
if (isAlreadyClickFlight) {
return;
}
setVisible(false);
setClick(true);
const {
unitCarbonEmission,
totalCarbonEmission,
totalTruckSize,
totalKilometres,
carSizeData = [],
} = item;
// 弹窗柱状图显示
const rets = [];
carSizeData && carSizeData.length && carSizeData.forEach(item => {
rets.push({
label: item[0],
value: item[1],
})
})
if (isFullScreen()) {
let legend = {};
let toolbox = {};
if (option.toolbox[0]) {
toolbox = option.toolbox[0];
} else {
toolbox = option.toolbox;
}
toolbox.left = null;
toolbox.top = 40;
toolbox.right = 30;
toolbox.bottom = null;
toolbox.feature.myFull.icon = "image://https://img.alicdn.com/imgextra/i4/O1CN01WjTtjv1xCuj5ZiLyZ_!!6000000006408-2-tps-200-200.png";
// 标题
option.title[0].left = 10;
option.title[0].bottom = 120;
if (option.legend[0]) {
legend = option.legend[0];
} else {
legend = option.legend;
}
legend.left = 10;
legend.bottom = 20;
} else {
let toolbox = {};
let legend = {};
if (option.toolbox[0]) {
toolbox = option.toolbox[0];
} else {
toolbox = option.toolbox;
}
toolbox.top = window.screen.height > 1200 ? 72 : 122;
toolbox.right = 358;
toolbox.feature.myFull.icon = "image://https://img.alicdn.com/imgextra/i1/O1CN01uVpZCF1V30vM3BxGI_!!6000000002596-2-tps-200-200.png";
option.title[0].left = 340;
option.title[0].bottom = 200;
if (option.legend[0]) {
legend = option.legend[0];
} else {
legend = option.legend;
}
legend.left = 340;
legend.bottom = window.screen.height > 1200 ? 395 : 345;
}
setData2(rets);
//根据业务自己拓展要显示的内容
var res = "";
res = "<div class='tool-tip'>" +
"<div class='title'><span>"+formName+"</span>-<span>"+toName+"</span></div>" +
"<div class='t-content'>"+
"<div><span class='desc'>单位公里排放量</span><span class='t-content'><i>"+unitCarbonEmission+"</i>吨/公里</span></div>" +
"<div><span class='desc'>碳排量</span><span class='t-content'><i>"+totalCarbonEmission+"</i>吨</span></div>" +
"<div><span class='desc'>总车次</span><span class='t-content'><i>"+totalTruckSize+"</i>次</span></div>" +
"<div><span class='desc'>总公里数</span><span class='t-content'><i>"+totalKilometres+"</i>公里</span></div>" +
"</div>"
"</div>";
return res;
}
},
backgroundColor: new echarts.graphic.LinearGradient(0.1, 1, 1, 0.5, [
{
offset: 0,
color: '#0f0f0f', // 0% 处的颜色
},
{
offset: 0.2,
color: '#272c37', // 0% 处的颜色
},
{
offset: 0.75,
color: '#272c37', // 0% 处的颜色
},
{
offset: 0.9,
color: '#0f0f0f', // 0% 处的颜色
},
{
offset: 1,
color: '#0f0f0f' // 100% 处的颜色
}
], false),
animation: false, // 解决阻止拖拽和缩放时上下图层不同步的问题
geo: [{
map: 'china', // 地图名
zlevel: 2, // geo显示级别，默认是0
roam: true, // 设置为false，不启动roam缩放
scaleLimit: { //滚轮缩放的极限控制
min: 0.5,
max: 3
},
selectedMode: false, // 不让点击
zoom: 1,
label: {
emphasis: {
show: false,
areaColor: 'null',
}
},
regions: [
{
name: "南海诸岛",
itemStyle: {
// 隐藏南海诸岛
normal: {
opacity: 0,
}
}
}
],
itemStyle: { // 顶层地图的样式，如地图区域颜色，边框颜色，边框大小等
normal: {
borderColor: '#33587F', // 边框颜色
areaColor:'#31344a', // 地图区域颜色
borderWidth: 1, // 边框大小
},
emphasis: {
areaColor: 'null',
color: 'rgba(37, 43, 61, 0)', //悬浮背景
}
}
},{
map: 'china',
zoom: 1,
roam: true,
selectedMode: false, // 不让点击
scaleLimit: { //滚轮缩放的极限控制
min: 0.5,
max: 3
},
label: {
emphasis: {
show: false,
areaColor: 'null',
}
},
regions: [
{
name: "南海诸岛",
itemStyle: {
// 隐藏南海诸岛
normal: {
opacity: 0,
}
}
}
],
itemStyle: { // 地图的样式，如地图区域颜色，边框颜色，边框大小等
normal: {
borderColor: '#56b7ec', // 边框颜色
areaColor:'#31344a', // 地图区域颜色
borderWidth: 4, // 边框大小
// 边框设置阴影 颜色渐变
shadowBlur: 10,
shadowColor: 'rgba(86, 183, 236, .5)',
shadowOffsetX: 1,
shadowOffsetY: 1,
},
emphasis: {
color: 'rgba(37, 43, 61, 0)', //悬浮背景
areaColor: null,
}
}
}],
series: series,
zlevel: 1,
};
option.series.unshift({
type: 'map',
map: 'china',
selectedMode: false, // 不让点击
label: {
show: false,
},
roam: true,
geoIndex: 0,
data: [],
})
window.GLOBAL_OPTIONS = option;
// 首次渲染页面
useEffect(() => {
let mapWidth = document.getElementById('myChart').offsetWidth;
var screenWidth = window.screen.width;
let h = window.screen.height;
console.log('----window.screen.height---', window.screen.height);
if (window.screen.height > 1200) {
h = document.body.clientHeight
} else if (window.screen.height < 900) {
h = 900;
}
document.getElementById('china').style.height = h + 'px';
china = echarts.init(document.getElementById('china'));
setLegendPos();
console.log('----初始化---', window.GLOBAL_OPTIONS);
china.setOption(window.GLOBAL_OPTIONS);
const ulList = document.getElementById('ul-list');
const liLists = ulList.getElementsByTagName('li');
// 设置画布的高度
document.getElementById('myChart').style.height = h - 48 + 'px';
// 监听鼠标滚动的坐标
document.onmousemove = function (event) {
const values = pos(event);
if (!isAlreadyClickFlight) {
setXYValue(values);
}
}
document.onclick = function(event) {
if (!isFixed) {
setFixed(false);
}
if (!isClick) {
setClick(false);
}
if (!isVisible) {
setVisible(false);
}
isAlreadyClickFlight = false;
event.stopPropagation();
}
ulList.addEventListener('click', function(e) {
e.stopPropagation();
console.log('---window.GLOBAL_OPTIONS---', window.GLOBAL_OPTIONS);
const target = e.target || e.srcElement;
const cIndex = target.getAttribute('data-index');
setCurrentIndex(cIndex);
// 先删除所有的类名
for (let i = 0; i < liLists.length; i++) {
liLists[i].classList.remove('current');
}
var currentClass = target.getAttribute('class');
if (currentClass) {
currentClass = currentClass.concat(" current");
} else {
currentClass = "current";
}
target.setAttribute("class", currentClass);
initFlight();
if (isFullScreen()) {
let legend = {};
let toolbox = {};
if (window.GLOBAL_OPTIONS.toolbox[0]) {
toolbox = window.GLOBAL_OPTIONS.toolbox[0];
} else {
toolbox = window.GLOBAL_OPTIONS.toolbox;
}
toolbox.left = null;
toolbox.top = 30;
toolbox.right = 30;
toolbox.bottom = null;
toolbox.feature.myFull.icon = "image://https://img.alicdn.com/imgextra/i4/O1CN01WjTtjv1xCuj5ZiLyZ_!!6000000006408-2-tps-200-200.png";
// 标题
window.GLOBAL_OPTIONS.title[0].left = 10;
window.GLOBAL_OPTIONS.title[0].bottom = 120;
if (window.GLOBAL_OPTIONS.legend[0]) {
legend = window.GLOBAL_OPTIONS.legend[0];
} else {
legend = window.GLOBAL_OPTIONS.legend;
}
legend.left = 10;
legend.bottom = 20;
} else {
let toolbox = {};
let legend = {};
if (window.GLOBAL_OPTIONS.toolbox[0]) {
toolbox = window.GLOBAL_OPTIONS.toolbox[0];
} else {
toolbox = window.GLOBAL_OPTIONS.toolbox;
}
toolbox.top = window.screen.height > 1200 ? 72 : 122;
toolbox.right = 358;
toolbox.feature.myFull.icon = "image://https://img.alicdn.com/imgextra/i1/O1CN01uVpZCF1V30vM3BxGI_!!6000000002596-2-tps-200-200.png";
window.GLOBAL_OPTIONS.title[0].left = 340;
window.GLOBAL_OPTIONS.title[0].bottom = 200;
if (window.GLOBAL_OPTIONS.legend[0]) {
legend = window.GLOBAL_OPTIONS.legend[0];
} else {
legend = window.GLOBAL_OPTIONS.legend;
}
legend.left = 340;
legend.bottom = window.screen.height > 1200 ? 395 : 345;
}
const { geo = [] } = window.GLOBAL_OPTIONS;
if (geo && geo.length) {
geo.forEach(item => {
item.zoom = GLOBAL_ZOOM;
});
};
setLegendPos();
resetLayoutSize();
if (window.GLOBAL_OPTIONS.series[GLOBAL_SERIES_INDEX]) {
window.GLOBAL_OPTIONS.series[GLOBAL_SERIES_INDEX].lineStyle.normal.width = GLOBAL_LINE_WIDTH;
}
console.log('----click---click---window.GLOBAL_OPTIONS----', window.GLOBAL_OPTIONS);
china.setOption(window.GLOBAL_OPTIONS);
});
window.onresize = function() {
let h;
let w = mapWidth;
if (isFullScreen()) {
setFull(true);
h = window.screen.height;
w = screenWidth;
} else {
setFull(false);
h = window.screen.height;
w = mapWidth; // 要加200
}
console.log('---h---', h);
china.resize({
height: h,
width: w,
});
}
// 捕捉到georoam事件，使下层的geo随着上层的geo一起缩放拖拽
china.off('georoam').on('georoam', function(params) {
var option = china.getOption();
const { geo = [] } = option;
if (geo && geo.length) {
GLOBAL_ZOOM = geo[0].zoom || 1;
}
if (params.zoom != null && params.zoom != undefined) { // 捕捉到缩放时
option.geo[1].zoom = option.geo[0].zoom; // 下层geo的缩放跟着上层的geo一起改变
option.geo[1].center = option.geo[0].center; // 下层的geo的中心位置随着上层的geo一起改变
} else {
option.geo[1].center = option.geo[0].center; // 下层的geo的中心位置随着上层的geo一起改变
}
china.setOption(option);
});
china.off('mouseout').on('mouseout', function(params) {
if (!isAlreadyClickFlight) {
if (params.data) { // 有数据说明移到了飞线图那个地方
setVisible(true);
}
}
});
china.off('click').on('click', { type: 'effectScatter' }, function(params) {
let {
data = {},
} = params;
initFlight();
setLegendPos();
resetLayoutSize();
console.log('----window.GLOBAL_OPTIONS----', window.GLOBAL_OPTIONS);
const cloneOptions = _.cloneDeep(window.GLOBAL_OPTIONS);
let seriesIndex = getSeriesIndex(cloneOptions, params);
if (cloneOptions.series[seriesIndex] && cloneOptions.series[seriesIndex].lineStyle) {
GLOBAL_LINE_WIDTH = 6;
// 改变状态，已经点击了飞线图
GLOBAL_SERIES_INDEX = seriesIndex;
setTimeout(() => {
cloneOptions.series[seriesIndex].lineStyle.normal.width = 6;
setFixed(true);
setClick(true);
setVisible(false);
isAlreadyClickFlight = true;
}, 300);
const datas = params.data ? params.data : null;
setLineData(datas);
}
if (isFullScreen()) {
let legend = {};
let toolbox = {};
if (cloneOptions.toolbox[0]) {
toolbox = cloneOptions.toolbox[0];
} else {
toolbox = cloneOptions.toolbox;
}
toolbox.left = null;
toolbox.top = 30;
toolbox.right = 30;
toolbox.bottom = null;
toolbox.feature.myFull.icon = "image://https://img.alicdn.com/imgextra/i4/O1CN01WjTtjv1xCuj5ZiLyZ_!!6000000006408-2-tps-200-200.png";
if (cloneOptions.legend[0]) {
legend = cloneOptions.legend[0];
} else {
legend = cloneOptions.legend;
}
legend.left = 10;
legend.bottom = 20;
} else {
let toolbox = {};
let legend = {};
if (cloneOptions.toolbox[0]) {
toolbox = cloneOptions.toolbox[0];
} else {
toolbox = cloneOptions.toolbox;
}
toolbox.top = window.screen.height > 1200 ? 72 : 122;
toolbox.right = 358;
toolbox.feature.myFull.icon = "image://https://img.alicdn.com/imgextra/i1/O1CN01uVpZCF1V30vM3BxGI_!!6000000002596-2-tps-200-200.png";
if (cloneOptions.legend[0]) {
legend = cloneOptions.legend[0];
} else {
legend = cloneOptions.legend;
}
legend.left = 340;
legend.bottom = window.screen.height > 1200 ? 395 : 345;
}
const { geo = [] } = cloneOptions;
if (geo && geo.length) {
geo.forEach(item => {
item.zoom = GLOBAL_ZOOM;
});
};
console.log('----isFull--isFull000---', cloneOptions);
window.GLOBAL_OPTIONS = cloneOptions;
setTimeout(() => {
china.setOption(cloneOptions);
}, 350);
const { item = {} } = data;
const rets = [];
const { carSizeData = [] } = item;
if (carSizeData && carSizeData.length) {
carSizeData.forEach(item => {
rets.push({
label: item[0],
value: item[1],
})
});
setData2(rets);
}
params.event.event.stopPropagation();
});
const closed = document.getElementById('closed');
const showBtn = document.getElementById('show-table-btn');
closed?.addEventListener('click', function(e) {
console.log('---closed---');
setVisible(true);
e.stopPropagation();
});
showBtn?.addEventListener('click', function(e) {
setVisible(false);
e.stopPropagation();
});
}, [datas]);
console.log(1111);
return (
<div>
<div className="mychart-container" id="myChart">
<div id="wrapMap" className={ isFull ? '' : (window.screen.height > 1200 ? 'wrapMap current' : 'wrapMap' ) }>
<div id="china"></div>
<div className={ isFull ? 'south-sea isfull' : ( window.screen.height > 1200 ? 'south-sea current' : 'south-sea')}></div>
</div>
<ul id="ul-list" className={ isFull ? 'ul-list isfull' : 'ul-list'}>
<li className="current" data-index="0">碳排量</li>
<li data-index="1">单位公里碳排量</li>
</ul>
<div className="show-table-container">
<div id="show-table" className={
!isFull ? (isVisible ? "show-table slideOutLeft" : (isClick ? "show-table slideInLeft" : "show-table slideOutLeft none")) :
(isVisible ? "show-table slideOutLeft isfull" : (isClick ? "show-table slideInLeft isfull" : "show-table slideOutLeft isfull none"))
}>
<div className="closed" id="closed"></div>
<div className="msg1">车次</div>
<div className={ isFull ? 'msg2 isfull' : 'msg2'}>单位公里碳排放量(t/km)</div>
<div className="table-content">
<Chart height={ isFull ? 233 : 155 } autoFit data={data2} padding={[30, 30, 30, 50]} >
<Interval position="label*value" size={8} />
<Tooltip visible={false} />
<Axis
name="value"
label={
{
style: {
fill: 'rgba(255,255,255,0.65)',
}
}
}
grid={
{
line: {
type: 'line',
style: {
stroke: '#2b2c38'
}
}
}
}
/>
<Axis
name="label"
// visible={false}
label={
{
style: {
fill: 'rgba(255,255,255,0.65)',
}
}
}
line={{
style: {
stroke: '#2b2c38'
}
}}
tickLine={{
style: {
stroke: '#2b2c38'
}
}}
/>
</Chart>
</div>
</div>
</div>
<div id="show-table-btn" className={
!isFull ? (isVisible ? 'show-table-btn' : 'show-table-btn none') : (isVisible ? 'show-table-btn isfull' : 'show-table-btn isfull none')
}></div>
<div
className={ isFixed ? "alert-pos isFixed" : 'alert-pos' }
style={{ top: xy_value ? xy_value.y + 'px' : '-9999px', left: xy_value ? xy_value.x + 'px' : '-9999px' }}
>
<div className='tool-tip'>
<div className='title'>
<span>{line_datas && line_datas.formName}</span>-
<span>{line_datas && line_datas.toName}</span>
</div>
<div className='t-content'>
<div>
<span className='desc'>单位公里排放量</span>
<span className='t-content'>
<i>{line_datas && line_datas.item && line_datas.item.unitCarbonEmission}</i>吨/公里
</span>
</div>
<div>
<span className='desc'>碳排量</span>
<span className='t-content'>
<i>{line_datas && line_datas.item && line_datas.item.totalCarbonEmission}</i>吨
</span>
</div>
<div>
<span className='desc'>总车次</span>
<span className='t-content'><i>{line_datas && line_datas.item && line_datas.item.totalTruckSize}</i>次</span>
</div>
<div>
<span className='desc'>总公里数</span>
<span className='t-content'><i>{line_datas && line_datas.item && line_datas.item.totalKilometres}</i>公里</span>
</div>
</div>
</div>
</div>
</div>
<div className="isFull_default"></div>
<div className="isShinkage_default"></div>
<div className="isFull_default_hover"></div>
<div className="isShinkage_default_hover"></div>
<div className="show-table-btn-hover"></div>
<div className="show-table-closed-hover"></div>
</div>
);
};
export default MyChart;
echarts如何设置地图外框，及实现多个geo缩放拖拽同步
设置地图边框的基本原理：两个地图叠加，第一个地图的底层地图设置边框，即 geo中的 itemStyle.normal的属性。(显示的是中国边界线的边框，较宽)。 第二个地图的上层地图设置边框，即 series中的 itemStyle.normal属性。
如上配置部分代码实现边框：
geo: [
{
map: 'china', // 地图名
zlevel: 2, // geo显示级别，默认是0
roam: true, // 设置为false，不启动roam缩放
scaleLimit: { //滚轮缩放的极限控制
min: 0.5,
max: 3
},
selectedMode: false, // 不让点击
zoom: 1,
label: {
emphasis: {
show: false,
areaColor: 'null',
}
},
itemStyle: { // 顶层地图的样式，如地图区域颜色，边框颜色，边框大小等
normal: {
borderColor: '#33587F', // 边框颜色
areaColor:'#31344a', // 地图区域颜色
borderWidth: 1, // 边框大小
},
emphasis: {
areaColor: 'null',
color: 'rgba(37, 43, 61, 0)', //悬浮背景
}
}
},
{
map: 'china',
zoom: 1,
roam: true,
selectedMode: false, // 不让点击
scaleLimit: { //滚轮缩放的极限控制
min: 0.5,
max: 3
},
label: {
emphasis: {
show: false,
areaColor: 'null',
}
},
itemStyle: { // 地图的样式，如地图区域颜色，边框颜色，边框大小等
normal: {
borderColor: '#56b7ec', // 边框颜色
areaColor:'#31344a', // 地图区域颜色
borderWidth: 4, // 边框大小
},
emphasis: {
color: 'rgba(37, 43, 61, 0)', //悬浮背景
areaColor: null,
}
}
}
]
如上代码，geo 设置了 true，允许缩放，但是两个地图如何实现拖拽缩放同步呢？
解决的办法：添加如下js监听代码，捕捉 georoam事件，使下层 geo 跟着上层 geo 一起拖拽缩放。如下监听代码：
// 捕捉到georoam事件，使下层的geo随着上层的geo一起缩放拖拽
china.off('georoam').on('georoam', function(params) {
var option = china.getOption();
const { geo = [] } = option;
if (geo && geo.length) {
GLOBAL_ZOOM = geo[0].zoom || 1;
}
if (params.zoom != null && params.zoom != undefined) { // 捕捉到缩放时
option.geo[1].zoom = option.geo[0].zoom; // 下层geo的缩放跟着上层的geo一起改变
option.geo[1].center = option.geo[0].center; // 下层的geo的中心位置随着上层的geo一起改变
} else {
option.geo[1].center = option.geo[0].center; // 下层的geo的中心位置随着上层的geo一起改变
}
china.setOption(option);
});
如上代码只是对 缩放有效，对拖动的时候，底层地图和上层地图还是不能同步到，需要把 animation: false, 设置false 解决阻止拖拽时上下图层不同步的问题。
